510 Thread Cartridges & Batteries · OEM

Empty 510 Thread Cartridges Wholesale for B2B Buyers

Compare eight empty 510-thread cartridge styles from 0.5mL to 2.0mL, including the D55 postless cartridge, plus two matching 510 batteries. Every cartridge uses a ceramic heating core. Custom orders start from 5,000 units per model and color.

8 styles0.5mL to 2.0mL cartridges
5,000 pcsMOQ per model and color
7–12 daysStandard color, plain white box
Empty hardwareNo CBD, THC, nicotine or e-liquid

Order structure: Each cartridge model starts at 5,000 pcs per color. Standard-color orders in plain white boxes normally take 7–12 days after deposit. We confirm the final lead time in the proforma invoice.

Recommended 510 Cartridges

Start with these four. Three suit thick oil with 4×2.0mm or 4×1.6mm inlets at 1.2–1.3Ω. The D55 adds a postless tank for brands that want a clear oil chamber.

Q5-01 empty 1ml 510 thread cartridge with flat plastic mouthpiece

Q5-01

Standard 1.0ml, Flat Mouthpiece

A 1.0mL cartridge with a 4×2.0mm inlet for high-viscosity CBD oil, distillate and live resin.

Capacity1.0ml
Resistance1.2Ω
Inlet4 × 2.0mm
MouthpieceFlat, plastic, press-fit
Size10.5 × 65mm

Request a Q5-01 quote →

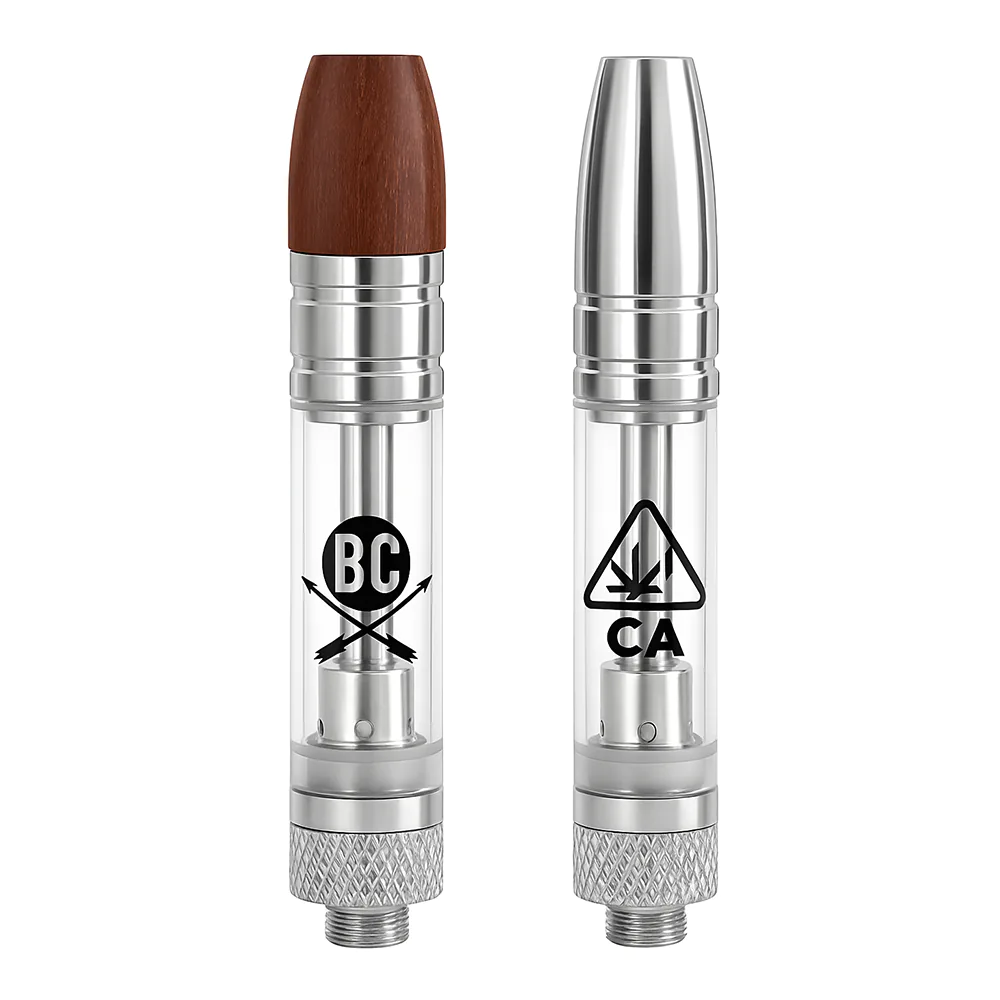

Q5-03 empty 0.5ml and 1ml 510 thread cartridge with wood, ceramic or zinc alloy mouthpiece

Q5-03

0.5ml / 1.0ml, Premium Mouthpiece

Pick a wood, ceramic or zinc-alloy mouthpiece to set a premium SKU apart. The mouthpiece screws on.

Capacity0.5ml or 1.0ml
Resistance1.2Ω
Inlet4 × 2.0mm
MouthpieceWood, ceramic or zinc alloy, screw-on
Size10.5 × 62.5mm

Request a Q5-03 quote →

Q5-05 slim 10mm empty 510 thread cartridge, 0.5ml or 1ml

Q5-05

0.5ml / 1.0ml, Slim Tight Draw

The slimmest body in the range at 10.0mm. The 4×1.6mm inlet and 1.3Ω coil give a tighter draw for thinner oils.

Capacity0.5ml or 1.0ml
Resistance1.3Ω
Inlet4 × 1.6mm
MouthpieceFlat, plastic, press-fit
Size10.0 × 67.5mm

Request a Q5-05 quote →

D55 1ml postless 510 thread cartridge with clear PCTG tank and no center post

D55 · New

1.0ml Postless Cartridge

No center post inside the 1mL PCTG tank, so buyers see a clear oil chamber. The 1.6Ω core draws less power than 1.2Ω styles at the same voltage.

Capacity1.0ml
Resistance1.6Ω
Center postPostless
TankPCTG
SizeØ14.0 × 54.8mm

Request a D55 quote →

All 8 cartridge styles
ModelCapacityResistanceInletMouthpieceAssemblySize
Q5-011.0ml1.2Ω4 × 2.0mmFlat · plasticPress-fit10.5 × 65mm
Q5-021.0ml1.2Ω2 × 2.5mmFlat · ceramicPress-fit10.5 × 71mm
Q5-030.5 / 1.0ml1.2Ω4 × 2.0mmWood · ceramic · zincScrew10.5 × 62.5mm
Q5-050.5 / 1.0ml1.3Ω4 × 1.6mmFlat · plasticPress-fit10.0 × 67.5mm
Q5-060.5 / 1.0 / 2.0mlOn requestOn requestFlat · zirconia / ceramic / PCOn requestOn request
Q5-080.5 / 1.0 / 2.0mlOn requestOn requestRound · stainless / ceramic / glassOn requestOn request
Q5-101.0 / 2.0ml1.2Ω4 × 1.5mmRound · ceramicPress-fit14 × 50 / 14 × 60mm
D551.0ml1.6ΩOn requestOn requestOn requestØ14.0 × 54.8mm
Materials: Q5-06 comes with a stainless steel or lead-free brass center post. Q5-08 has a glass tank. We confirm the exact resistance, inlet and size for Q5-06, Q5-08 and D55 in the quotation.

More 510 Cartridge Options

These styles cover ceramic mouthpieces and 2.0ml capacities. Full specifications for every model are in the table above.

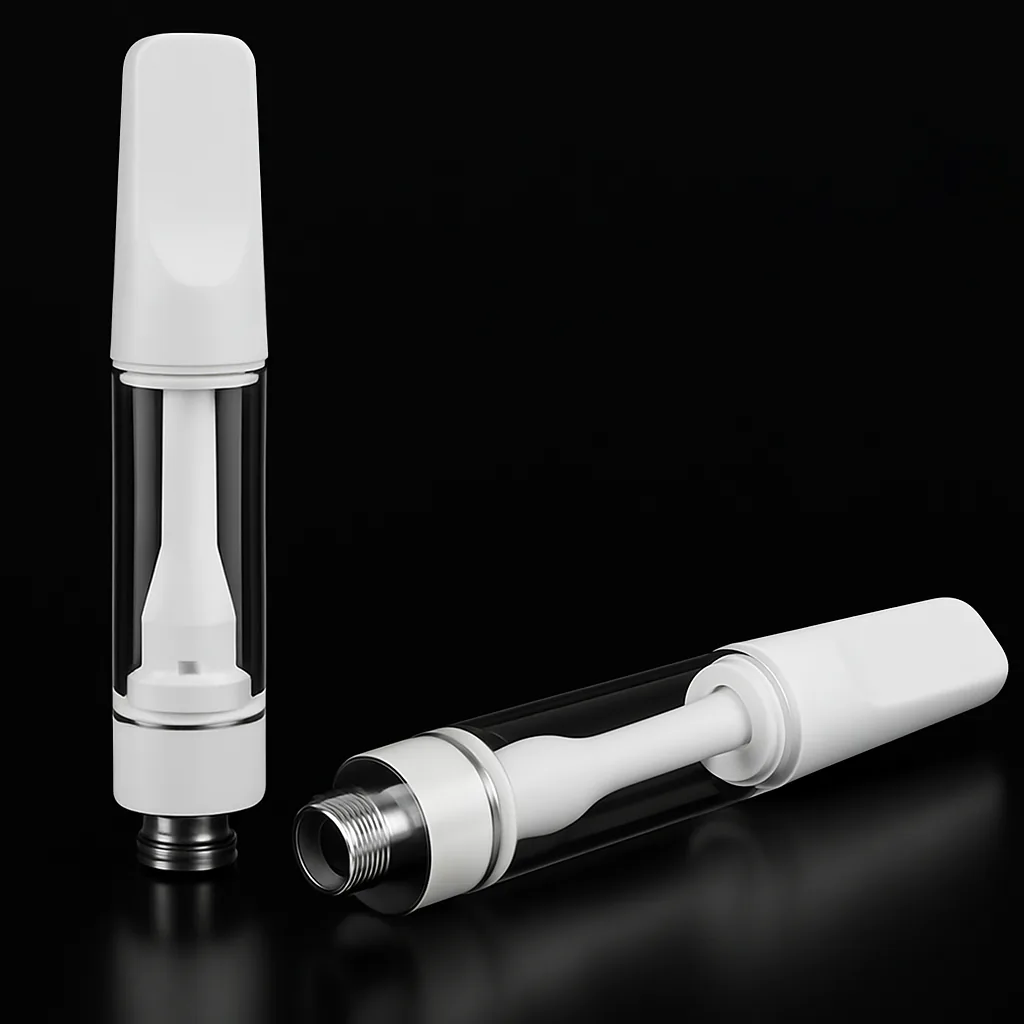

Q5-02 1ml 510 thread cartridge with ceramic mouthpiece and two 2.5mm inlets

Q5-02

1.0ml, Ceramic Mouthpiece

Capacity1.0ml
Resistance1.2Ω
Inlet2 × 2.5mm
MouthpieceFlat, ceramic, press-fit
Size10.5 × 71mm
Q5-06 510 thread cartridge with flat mouthpiece, 0.5ml to 2ml

Q5-06

0.5ml to 2.0ml, Flat Mouthpiece

Capacity0.5ml / 1.0ml / 2.0ml
Heating coreCeramic
MouthpieceFlat: zirconia, ceramic or PC
Center postStainless steel or lead-free brass
Q5-10 1ml or 2ml 510 thread cartridge with round ceramic mouthpiece

Q5-10

1.0ml / 2.0ml, Round Ceramic Mouthpiece

Capacity1.0ml or 2.0ml
Resistance1.2Ω
Inlet4 × 1.5mm
MouthpieceRound, ceramic, press-fit
Size14 × 50mm / 14 × 60mm

510 Thread Batteries

Pair any cartridge above with a matching battery. Confirm the fit and power setting with your cartridge and oil before production.

Q5-B1 300mAh 510 thread preheat battery with USB Type-C charging

Q5-B1

300mAh Preheat Battery

A slim pen battery with a preheat function for thick distillate.

Battery300mAh
FunctionPreheat
ChargingUSB Type-C
SizeØ10.5 / 11.2 × 90mm
Pairs with10–11mm cartridges
CD13 400mAh 510 thread battery with four voltage settings and digital display

CD13

400mAh Four-Voltage Battery

A 14mm battery with a digital display and four voltage settings, set with one button.

Battery400mAh
Voltage2.6V / 2.8V / 3.0V / 3.2V
ControlButton
DisplayDigital display
Diameter14mm

All-in-One & Lighter-Format Devices

For brands that sell one sealed unit instead of a cartridge and a battery.

Q5-X1 2ml all-in-one oil vape pen with 450mAh battery

Q5-X1

2.0ml All-in-One Pen

Capacity2.0ml
Resistance1.4Ω, ceramic
Battery450mAh
SizeØ14 / 16 × 132mm
Packing448 pcs per carton
Q5-D1 lighter-shaped oil vape device, 1ml or 2ml, 180mAh

Q5-D1

Lighter-Format Device

Capacity1.0ml or 2.0ml
Resistance1.3Ω
Battery180mAh · 3.7V
Size12.3 × 22.3 × 61mm
Packing1,000 pcs per carton

Choose a Cartridge by Oil and Draw

Match the inlet size and resistance to your oil first. Then pick the mouthpiece and capacity. Test samples with your own formulation and filling process before mass production.

Thick distillateQ5-01 and Q5-03 use 4×2.0mm inlets at 1.2Ω for high-viscosity oil.
Live resin and high-terpene oilsD55 has a postless tank and a 1.6Ω core that draws less power at the same voltage.
Thinner oils or a tighter drawQ5-05 uses a 4×1.6mm inlet and a 1.3Ω coil, so it restricts flow more than the 4×2.0mm styles.
Preheat and adjustable powerPair Q5-01 or Q5-05 with the Q5-B1 preheat battery, or use the CD13 to set 2.6V to 3.2V.
Premium mouthpieceQ5-02 and Q5-10 use ceramic mouthpieces. Q5-03 offers wood, ceramic or zinc alloy. Q5-08 has a glass tank.
2.0ml capacityQ5-06, Q5-08 and Q5-10 all offer a 2.0ml version.

MOQ, Lead Time and Payment

ItemRule
Cartridges, Q5-B1, Q5-X1, Q5-D15,000 pcs per model and color
CD13 battery10,000 pcs per model; normally 3,000 pcs per color
PriceAvailable on request
Standard color, plain white box7–12 days after deposit
Logo printing or custom color7–12 days after deposit; artwork in AI or PDF, Pantone reference for color
Custom retail packaging10–15 days; box size and artwork confirmed first
Standard packingWhite boxes with EPE foam inserts; 1,000 cartridges per carton for most styles
Payment50% deposit and 50% balance before shipment
FreightEXW China; freight is paid by the buyer. Forwarder introduction is available.
Before ordering: Confirm the model, capacity, mouthpiece, color split, logo, packaging, battery match and destination country. We confirm the final lead time in the proforma invoice.

510 Cartridge OEM Questions

What is the MOQ for empty 510 cartridges?

5,000 pcs per model and color. The Q5-B1 battery and the all-in-one devices follow the same rule. The CD13 battery starts at 10,000 pcs per model.

Which 510 cartridge works best with thick distillate?

Start with Q5-01 or Q5-03. Both use 4×2.0mm inlets and a 1.2Ω ceramic coil built for high-viscosity fill. Test samples with your own distillate before mass production.

What is a postless 510 cartridge?

A postless cartridge has no metal center post inside the tank. The D55 uses this design with a 1mL PCTG tank, so the oil chamber stays clear.

Do these cartridges fit any 510 battery?

All cartridges use the 510-thread standard. Fit and power still vary by battery, so confirm the match with samples. The Q5-B1 and CD13 batteries are available from us.

Are the cartridges shipped empty?

Yes. Every cartridge ships empty, with no CBD, THC, nicotine or e-liquid. Read the filling and capping guide before your first production run.

Compatibility refers only to the relevant connector or interface standard. QQVape is not affiliated with RELX, OXVA, Marbo, or any other third-party brand. All trademarks belong to their respective owners. Products are supplied as empty hardware and contain no nicotine, CBD, THC, or e-liquid. Buyers are responsible for confirming import, product and market compliance in the destination country.
