D-Series · Project-based OEM hardware
D59 2mL Concentrate Vape Device for OEM Projects
The D59 2mL concentrate vape device combines a screen-equipped compact 66.5mm body with a postless PCTG tank, 260mAh rechargeable battery and ceramic heating core. QQVape supplies it as empty hardware for private-label concentrate projects from 10,000 units per model.
Empty hardware only · Price available on request

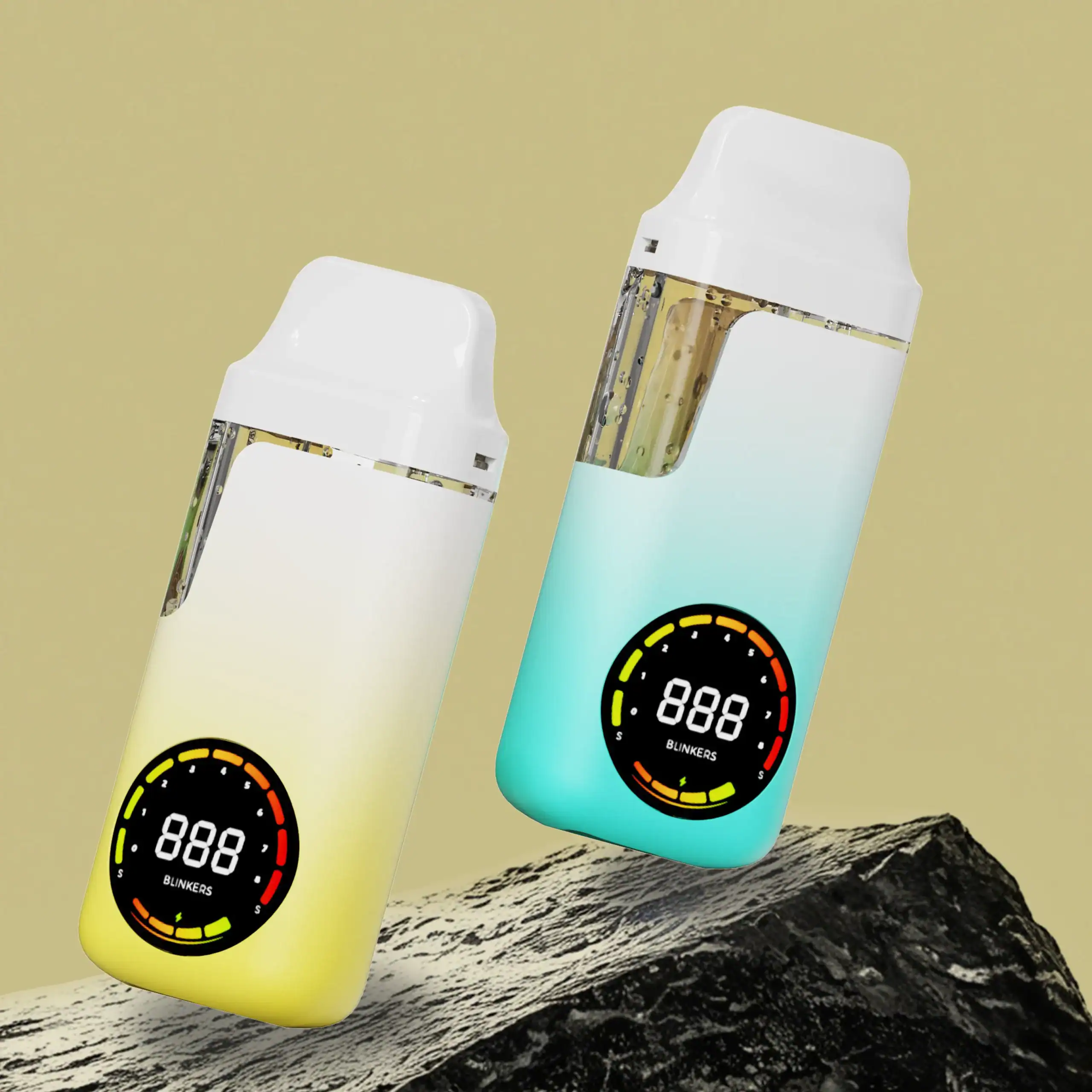

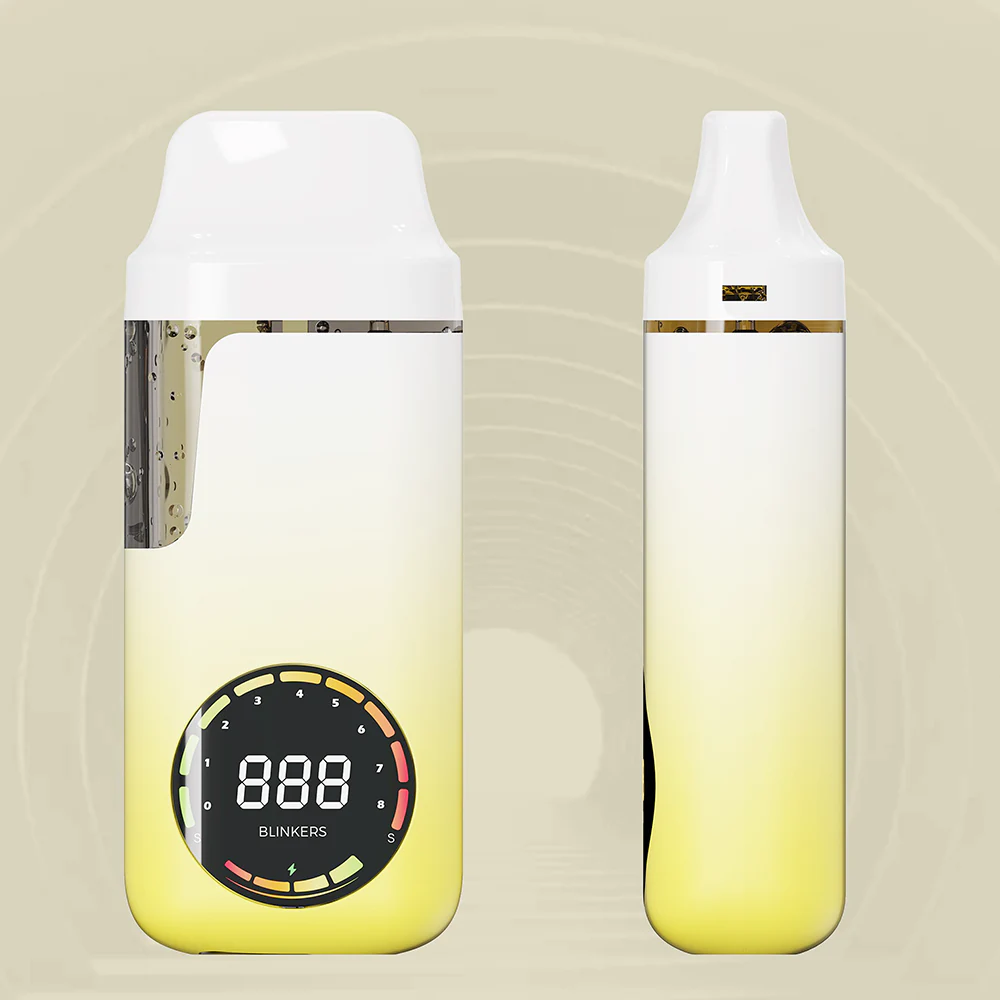

Product views

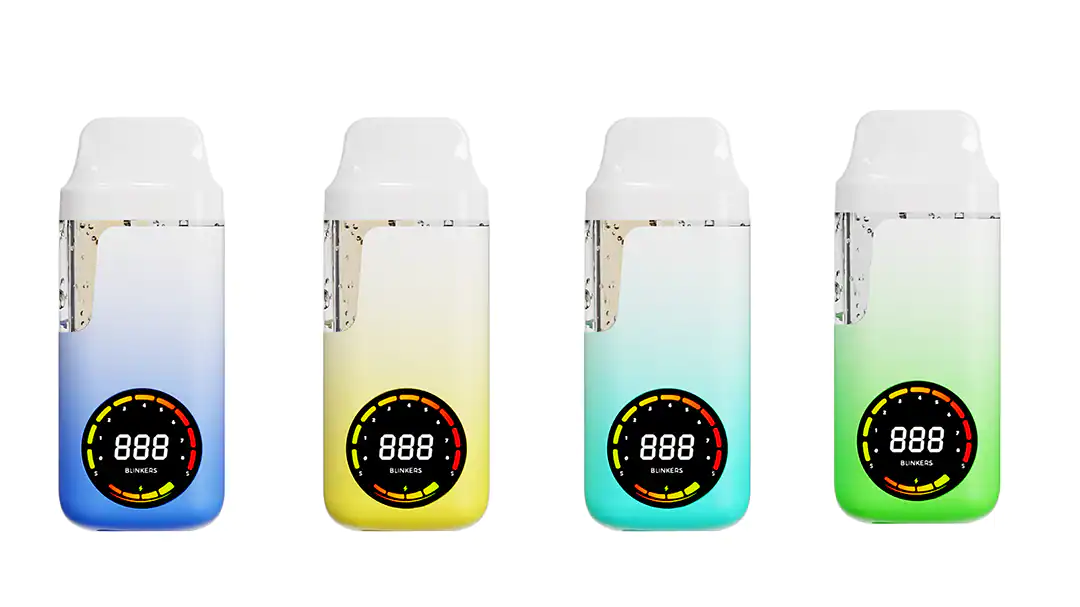

D59 Hardware and OEM Color Options
The images show the D59 body from different angles and the available exterior color direction. Final color availability, finish and color split are confirmed with the quotation.
Confirmed product data
D59 2mL Concentrate Vape Device Specifications
QQVape confirms the final color, branding, packaging and order specification before issuing the pro forma invoice.
- Model
- D59
- Dimensions
- 66.5 × 26.75 × 16.0 mm
- Tank volume
- 2mL
- Tank material
- PCTG
- Heating core
- Ceramic heating core
- Resistance
- 1.8Ω
- Tank structure
- Postless
- Oil inlet openings
- 4 × 1.5 mm
- Display
- Screen
- Activation
- Inhale activated
- Battery capacity
- 260mAh
- Output voltage
- 3.0V
- Charging
- USB Type-C
Hardware selection
What the D59 Adds to a Concentrate Hardware Project
2mL in a Compact Body
The 66.5 × 26.75 × 16.0 mm format combines a 2mL tank and a 260mAh rechargeable battery in one all-in-one device.
Postless Ceramic Structure
The postless PCTG tank uses a 1.8Ω ceramic heating core and four 1.5 mm oil inlet openings.
Screen and Draw Activation
The screen adds a visible device feature without changing the simple draw-activated operation, while USB Type-C supports battery charging.
Two production routes
D59 OEM MOQ, Packaging and Lead Time
Choose the production route by the level of exterior and packaging customization required for the project.
Stock Color + Neutral Packaging
Production normally requires 7–12 days after the deposit is received, when materials are ready. This route does not require artwork confirmation. Neutral packing uses small white boxes with EPE foam, 100 units per box.
Custom Color or Custom Packaging
Production normally requires around 15–18 days after the artwork or CMF design is confirmed. A 50% deposit is also required to begin production. A packaging dieline is available for the buyer’s design process.
MOQ: 10,000 units per model; normally 2,000 units per color.
Color split: Normally at least 2,000 units per color. The total D59 order must reach 10,000 units.
Payment: 50% deposit and 50% balance before shipment.
Price: Available on request. Supply basis: EXW China; freight is paid by the buyer.
Formulation evaluation
Hardware Evaluation for Distillate and Concentrate Formulations
The D59 can be evaluated for projects using distillate, live resin, live rosin or D9 formulations. Formulation viscosity and filling conditions vary, so buyers should test the empty hardware with their own formulation before approving mass production. Read the D-series hardware guide for Distillate, Live Resin, Live Rosin and D9 for a side-by-side comparison.
Important: QQVape supplies the D59 as empty hardware and does not sell or fill e-liquid, CBD oil, THC oil or concentrate formulations.
Purchasing questions
D59 OEM FAQ
What is the MOQ for the D59?
The D59 MOQ is 10,000 units per model, with normally at least 2,000 units per color. The total order must still reach 10,000 units.
How quickly can QQVape produce the D59?
Stock-color orders with neutral packaging normally require 7–12 days after deposit receipt when materials are ready. Custom color or packaging normally requires around 15–18 days after artwork or CMF design confirmation.
Can the D59 be tested with my formulation?
Yes. Request an empty pre-production sample for evaluation with your formulation and filling process. Sample cost and timing are confirmed for the project.
Does the D59 arrive pre-filled?
No. The D59 2mL concentrate vape device ships as empty hardware. The buyer handles filling through its own authorized operation.
Send the project details
Request a D59 OEM Quotation
Send the quantity, color split, logo, packaging route, formulation type and destination country. Leo will confirm the D59 specification, production route and quotation.
Compatibility refers only to the relevant connector or interface standard. QQVape is not affiliated with RELX, OXVA, Marbo, or any other third-party brand. All trademarks belong to their respective owners. Products are supplied as empty hardware and contain no nicotine, CBD, THC, or e-liquid. Buyers are responsible for confirming import, product and market compliance in the destination country.
